CL7016C
High Res USB Type-C Compliant Audio CODEC
1. Product Overview
A highly-integrated and low-cost USB aduio CODEC optimized for USB Type-C headset.
24-bit stereo playback and record paths for music and voice applications.
Powered by 5V.
Compliant with industry specifications, USB 2.0 full speed.
2. Applications
USB Type-C Headset, USB Type-C Docking Station, USB Gaming Headset
3. Features
USB 2.0 Full Speed 12MHz
MCU with On Chip ROM and SRAM
On Chip 2Mbit Flash
DAC and Headphone 104dB Dynamic Range (A-weighted)
DAC and Headphone -95 dB THD+N with 32 ohms loads
Class H amplifier, automatic supply adjustment, High efficiency, Low EMI
Headphone Pseudodifferential ground-centered outputs
Pop and click suppression
DAC and HP analog volume control (+6 to -50 dB in 1 dB steps) with zero-cross transitions
DAC and HP Digital volume control (+12 to -102 dB in 0.5 dB steps) with soft-ramp transitions
A dynamic range compression for playback
Stereo record path, supporting up to 48 kbps 24bit
Linein ADC 100db Dynamic Range (A-weighted)
Linein ADC 100db SNR
Linein ADC -95 dB THD+N@1KHz
MIC preamp and ADC 96db Dynamic Range (A-weighted)
MIC preamp and ADC -93 dB THD+N@1KHz
Hi-Res audio on USB, supporting 48KHz 24bit recording and 48KHz 24bit playback
48KHz 16bit recording and 96KHz 24bit playback
48KHz 16bit recording and 192KHz 16bit playback
48KHz 16bit recording and 48KHz 16bit playback
Dual analog MIC inputs
Programmable low-noise MIC bias outputs
Analog MIC gain boost 12 dB or 18 dB
Analog programmable gain amplifier (PGA) (0dB to 24db in 1 dB steps)
Programmable automatic level control (ALC)
Noise gate for noise suppression
Low power consumption
48-pin QFN and 48-pin BGA package available

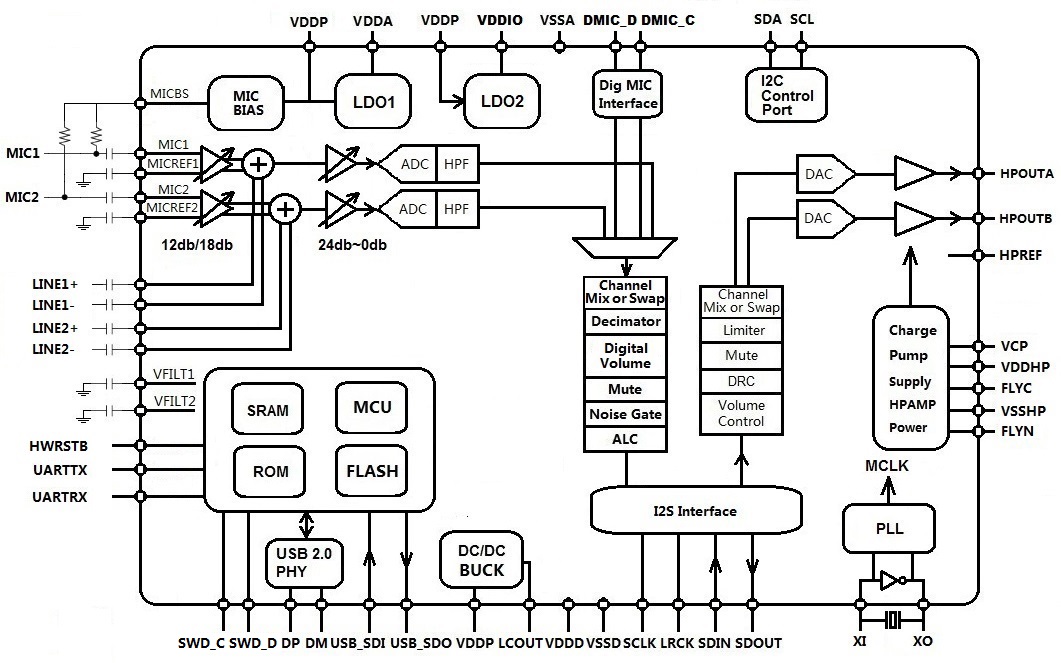

4. Block Diagram
1. Product Overview
A highly-integrated and low-cost USB aduio CODEC optimized for USB Type-C headset.
24-bit stereo playback and record paths for music and voice applications.
Powered by 5V.
Compliant with industry specifications, USB 2.0 full speed.
2. Applications
USB Type-C Headset, USB Type-C Docking Station, USB Gaming Headset
3. Features
USB 2.0 Full Speed 12MHz
MCU with On Chip ROM and SRAM
On Chip 2Mbit Flash
DAC and Headphone 104dB Dynamic Range (A-weighted)
DAC and Headphone -95 dB THD+N with 32 ohms loads
Class H amplifier, automatic supply adjustment, High efficiency, Low EMI
Headphone Pseudodifferential ground-centered outputs
Pop and click suppression
DAC and HP analog volume control (+6 to -50 dB in 1 dB steps) with zero-cross transitions
DAC and HP Digital volume control (+12 to -102 dB in 0.5 dB steps) with soft-ramp transitions
A dynamic range compression for playback
Stereo record path, supporting up to 48 kbps 24bit
Linein ADC 100db Dynamic Range (A-weighted)
Linein ADC 100db SNR
Linein ADC -95 dB THD+N@1KHz
MIC preamp and ADC 96db Dynamic Range (A-weighted)
MIC preamp and ADC -93 dB THD+N@1KHz
Hi-Res audio on USB, supporting 48KHz 24bit recording and 48KHz 24bit playback
48KHz 16bit recording and 96KHz 24bit playback
48KHz 16bit recording and 192KHz 16bit playback
48KHz 16bit recording and 48KHz 16bit playback
Dual analog MIC inputs
Programmable low-noise MIC bias outputs
Analog MIC gain boost 12 dB or 18 dB
Analog programmable gain amplifier (PGA) (0dB to 24db in 1 dB steps)
Programmable automatic level control (ALC)
Noise gate for noise suppression
Low power consumption
48-pin QFN and 48-pin BGA package available
4. Block Diagram
Please contact Cubic Lattice for product detail information and datasheet
