CL1009
Ultralow Power Mobile Audio CODEC with CLASS D Amps
1. Product Overview
Stereo analog-to-digital converter (ADC)
Dual analog or digital mic input
Dual pulse width modulator(PWM) CLASS D Amps.
One serial port
Digital audio mixing for all paths
Fully custom 5 Band BiQuad Equalizer for record or playback path
2. Applications
Drone, Wireless IP camera, Mobile Internet Devices, Car Driving Camera
3. Features
Support 5.6448/6.144/11.2896/12.288 MHz master clock rates
A PLL is integrated inside CL1009
Individual power-down controls for ADCs, micbias generators, serial ports, PWM, and
CLASS D output amplifiers
PGA In and ADC 98db SNR (A-weighted) with 1.1 Vrms Input, 97db Dynamic Range (A-weighted)
PGA In and ADC -96 dB THD+N
MIC Boost In(12db Gain) and ADC 92db SNR (A-weighted), 92db Dynamic Range (A-weighted)
MIC Boost In(12db Gain) and ADC -91 dB THD+N
Internal or External Stereo analog mic inputs, Programmable low-noise mic bias outputs
Analog MIC gain boost 12 dB or 18 dB
Analog programmable gain amplifier (PGA) (0dB to 24db in 1 dB steps)
Programmable automatic level control (ALC), Soft Noise Gate for noise suppression
Wind Noise Filter for noise suppression
Fully custom 5 Band BiQuad Equalizer for record path OR playback path
Danymic Range Compression for playback path
2X0.7 W @ 8 ohm 3.3V Class D Stereo Ouput
1.4 W @ 4 ohm 3.3V Class D Mono Ouput
Class D Ouput THD+N 0.3% 0.7 W @ 8 ohm 3.3V
Class D Dynamic Range 84db 0.7 W @ 8 ohm 3.3V
Class D SNR 83db 0.7 W @ 8 ohm 3.3V
Class D output SNR improvement by ADC sensing its noise and compensating in digital modulator
Pop and click suppression
Class D Digital volume control (6 to -56 dB in 0.5 dB steps) with soft-ramp transitions
I2S interface master or slave operation
8, 11.025, 12, 16, 22.05, 24, 32, 44.10, and 48 kHz sample rates
4. Block Diagram
1. Product Overview
Stereo analog-to-digital converter (ADC)
Dual analog or digital mic input
Dual pulse width modulator(PWM) CLASS D Amps.
One serial port
Digital audio mixing for all paths
Fully custom 5 Band BiQuad Equalizer for record or playback path
2. Applications
Drone, Wireless IP camera, Mobile Internet Devices, Car Driving Camera
3. Features
Support 5.6448/6.144/11.2896/12.288 MHz master clock rates
A PLL is integrated inside CL1009
Individual power-down controls for ADCs, micbias generators, serial ports, PWM, and
CLASS D output amplifiers
PGA In and ADC 98db SNR (A-weighted) with 1.1 Vrms Input, 97db Dynamic Range (A-weighted)
PGA In and ADC -96 dB THD+N
MIC Boost In(12db Gain) and ADC 92db SNR (A-weighted), 92db Dynamic Range (A-weighted)
MIC Boost In(12db Gain) and ADC -91 dB THD+N
Internal or External Stereo analog mic inputs, Programmable low-noise mic bias outputs
Analog MIC gain boost 12 dB or 18 dB
Analog programmable gain amplifier (PGA) (0dB to 24db in 1 dB steps)
Programmable automatic level control (ALC), Soft Noise Gate for noise suppression
Wind Noise Filter for noise suppression
Fully custom 5 Band BiQuad Equalizer for record path OR playback path
Danymic Range Compression for playback path
2X0.7 W @ 8 ohm 3.3V Class D Stereo Ouput
1.4 W @ 4 ohm 3.3V Class D Mono Ouput
Class D Ouput THD+N 0.3% 0.7 W @ 8 ohm 3.3V
Class D Dynamic Range 84db 0.7 W @ 8 ohm 3.3V
Class D SNR 83db 0.7 W @ 8 ohm 3.3V
Class D output SNR improvement by ADC sensing its noise and compensating in digital modulator
Pop and click suppression
Class D Digital volume control (6 to -56 dB in 0.5 dB steps) with soft-ramp transitions
I2S interface master or slave operation
8, 11.025, 12, 16, 22.05, 24, 32, 44.10, and 48 kHz sample rates

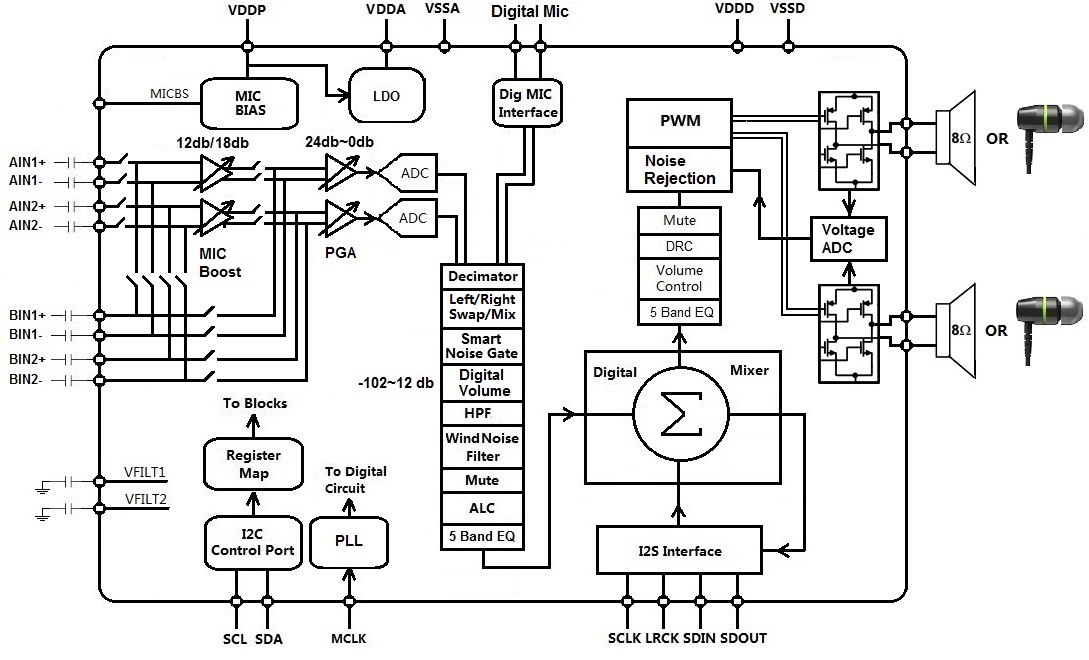

4. Block Diagram
