CL1026
Ultralow Power Mobile Audio CODEC
1. Product Overview
Stereo analog-to-digital converter (ADC)
Dual analog or digital mic input
Dual mic bias generators
Dual digital-to-analog converters (DACs) ground-centered headphone amp.
One serial port with asynchronous sample rate converters
Digital audio mixing for all paths
Fully custom 5 Band BiQuad Equalizer for record or playback path
2. Applications
Digital Mic, Wireless IP camera, Mobile Internet Devices, Car Driving Camera, Digital Headphone
3. Features
Native (no PLL required) support for 6/6.144/12/12.288 MHz master clock rates
High-efficiency power management reduces power consumption. Step down charge pump provides low supply voltage and negative voltage for HP amplifier
Individual power-down controls for ADCs, digital mic, micbias generators, serial ports, and output amplifiers and associated DACs
Line In and ADC 104db SNR (A-weighted) Reference to 1 Vrms, 100db Dynamic Range (A-weighted)
Line In and ADC -93 dB THD+N
MIC preamp and ADC 104db SNR (A-weighted) Reference to 1 Vrms, 94db Dynamic Range (A-weighted)
MIC preamp and ADC -91 dB THD+N
Dual analog mic inputs, two independent programmable low-noise mic bias outputs
Analog MIC gain boost 12 dB or 18 dB
Analog programmable gain amplifier (PGA) (0dB to 24db in 1 dB steps)
Programmable automatic level control (ALC), Noise gate for noise suppression
Wind Noise Filter for noise suppression
Programmable digital microphone clock rate: Integer divide by 2 or 4 of internal MCLK
DAC and Headphone 105dB SNR (A-weighted)
DAC and Headphone -93 dB THD+N with 3K ohms load, -92 dB THD+N with 32 ohms load
Fully custom 5 Band BiQuad Equalizer for record or playback path
Danymic Range Compression for playback path
Class H amplifier, automatic supply adjustment, High efficiency, Low EMI
Headphone Pseudodifferential ground-centered outputs
High HP power output 2 x 50mW into 16 ohms headphone @ 1.8 V
Pop and click suppression
Analog volume control (+6 to -50 dB in 1 dB steps; to -76 dB in 2 dB steps) with zero-cross transitions
Digital volume control (+12 to -102 dB in 0.5 dB steps) with soft-ramp transitions
Programmable peak-detect and limiter
I2S interface master or slave operation
8, 11.025, 12, 16, 22.05, 24, 32, 44.10, and 48 kHz sample rates
Asynchronous sample rate converters

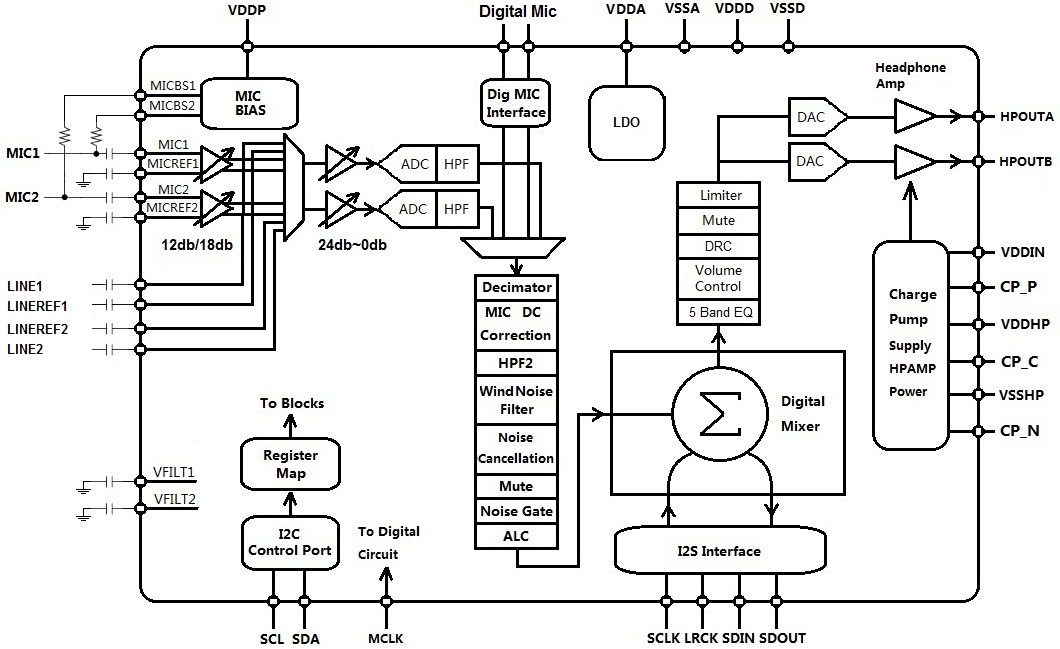

4. Block Diagram
1. Product Overview
Stereo analog-to-digital converter (ADC)
Dual analog or digital mic input
Dual mic bias generators
Dual digital-to-analog converters (DACs) ground-centered headphone amp.
One serial port with asynchronous sample rate converters
Digital audio mixing for all paths
Fully custom 5 Band BiQuad Equalizer for record or playback path
2. Applications
Digital Mic, Wireless IP camera, Mobile Internet Devices, Car Driving Camera, Digital Headphone
3. Features
Native (no PLL required) support for 6/6.144/12/12.288 MHz master clock rates
High-efficiency power management reduces power consumption. Step down charge pump provides low supply voltage and negative voltage for HP amplifier
Individual power-down controls for ADCs, digital mic, micbias generators, serial ports, and output amplifiers and associated DACs
Line In and ADC 104db SNR (A-weighted) Reference to 1 Vrms, 100db Dynamic Range (A-weighted)
Line In and ADC -93 dB THD+N
MIC preamp and ADC 104db SNR (A-weighted) Reference to 1 Vrms, 94db Dynamic Range (A-weighted)
MIC preamp and ADC -91 dB THD+N
Dual analog mic inputs, two independent programmable low-noise mic bias outputs
Analog MIC gain boost 12 dB or 18 dB
Analog programmable gain amplifier (PGA) (0dB to 24db in 1 dB steps)
Programmable automatic level control (ALC), Noise gate for noise suppression
Wind Noise Filter for noise suppression
Programmable digital microphone clock rate: Integer divide by 2 or 4 of internal MCLK
DAC and Headphone 105dB SNR (A-weighted)
DAC and Headphone -93 dB THD+N with 3K ohms load, -92 dB THD+N with 32 ohms load
Fully custom 5 Band BiQuad Equalizer for record or playback path
Danymic Range Compression for playback path
Class H amplifier, automatic supply adjustment, High efficiency, Low EMI
Headphone Pseudodifferential ground-centered outputs
High HP power output 2 x 50mW into 16 ohms headphone @ 1.8 V
Pop and click suppression
Analog volume control (+6 to -50 dB in 1 dB steps; to -76 dB in 2 dB steps) with zero-cross transitions
Digital volume control (+12 to -102 dB in 0.5 dB steps) with soft-ramp transitions
Programmable peak-detect and limiter
I2S interface master or slave operation
8, 11.025, 12, 16, 22.05, 24, 32, 44.10, and 48 kHz sample rates
Asynchronous sample rate converters
4. Block Diagram
Please contact Cubic Lattice for product detail information and datasheet
